Detail Information

Built-in ADC: 12-bit Resolution Op Amps And PGA: Enhanced Analog Signal Processing
Streamlined Peripheral Circuits: Simplified External Circuitry Inductive FOC: Efficient Field-Oriented Control
Dual Resistance Control Mode: Flexibility In Motor Control Hall Position Self-correction Algorithm: Error Correction For Hall Position Sensing
Cruise Control: Constant Speed Maintenance Locked-rotor Protection: Prevention Of Motor Lock-ups
High Light:

Green Riding PCBA


PCBA Green Riding


OEM pcba fabrication

Product Description

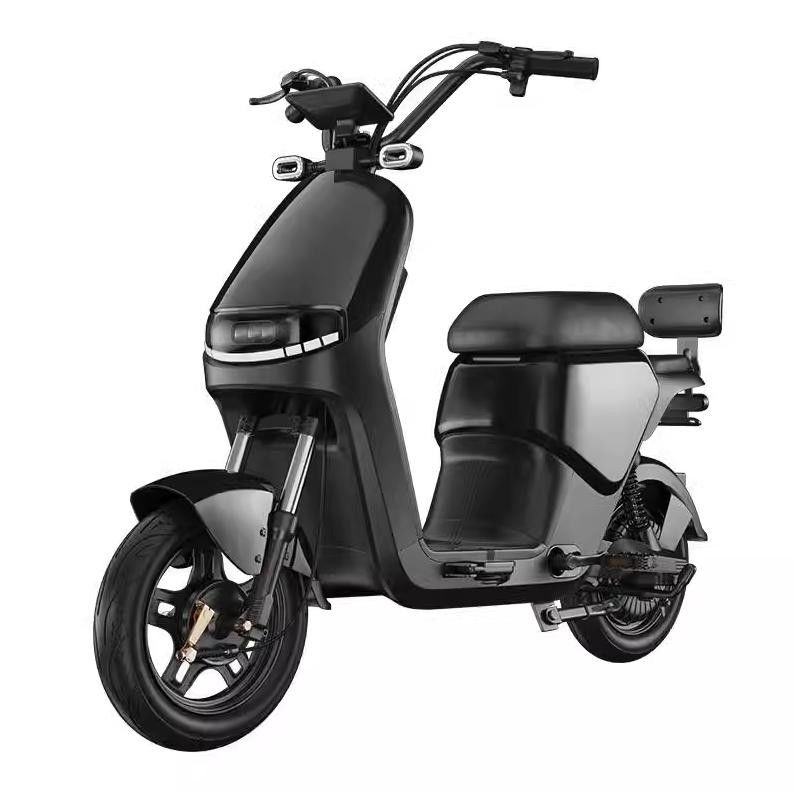

Electric bicycle controller solution





With the acceleration of people's life rhythm and the continuous expansion of the scope of activities, people hope to obtain a light, fast, simple and safe means of transportation. Electric bicycles are generally welcomed by consumers because they are light and fast, and meet the needs of modern people in pursuit of environmental protection, efficiency, and safety. In this regard, Golden Triangle Group has launched an electric bicycle controller solution with functions such as overcurrent, overvoltage, locked-rotor, and current-limiting protection.


Electric bicycle program performance characteristics:


> Built-in 12-bit ADC, multiple op amps, PGA, streamlined peripheral circuits

> Inductive FOC, dual resistance control mode

> Hall position self-correction algorithm, effectively solve the Hall position mechanical error

> Three gear speed limit, cruise control, EBS brake, anti-theft

> With over-current, over-voltage, locked-rotor, current-limiting protection and other functions



Attribute Value
Built-in ADC 12-bit resolution
Op amps and PGA Enhanced analog signal processing
Streamlined peripheral circuits Simplified external circuitry
Inductive FOC Efficient Field-Oriented Control
Dual resistance control mode Flexibility in motor control
Hall position self-correction algorithm Error correction for Hall position sensing
Three gear speed limit Speed regulation in different gears
Cruise control Constant speed maintenance
EBS brake Reliable electronic braking system
Anti-theft feature Theft prevention measures
Over-current protection Safeguards against excessive current
Over-voltage protection Protection against voltage spikes
Locked-rotor protection Prevention of motor lock-ups
Current-limiting protection Control of current to prevent overloads



System diagram


Electric Bicycle Controller Solution Green Riding PCBA Fabrication 0
