Product Description

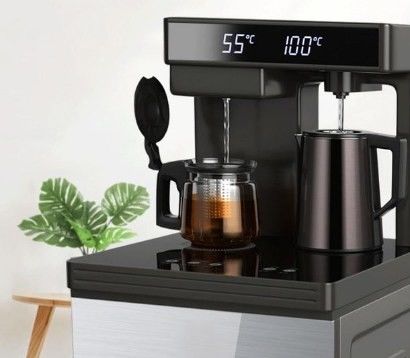

All-in-one tea bar solution

Description

With the improvement of people's living standards, the functions of traditional tea bar machines can no longer meet the demand. For this reason, Golden Triangle Group has launched a tea bar machine solution with high reliability and stable performance. This solution adopts the combination of main board + light board, simplified circuit, neat and beautiful touch screen, with multi-stage temperature control, one-key automatic water discharge, one-key heat preservation, automatic power-off protection and other special functions. Intelligent lighting refers to a distributed wireless telemetry, remote control, and remote control system composed of technologies such as the Internet of Things technology, wired/wireless communication technology, computer intelligent information processing, and energy-saving electrical control. The system has soft start, timing control, scene setting and other functions, and achieve the predetermined lighting effect. Golden Triangle Group is based on the ultra-low-power high-performance 8-bit RISC wireless SoC-CMS8W552x solution, which supports the brightness and color temperature control functions of the lamps. Support remote and local local area network control.

Tea bar machine program performance characteristics:

> 3 channels of high-precision 12-bit ADC, industrial-grade high-precision standards, high reliability

> TMR2 matching output T2OUT, adjustable frequency, can be used to drive the beeper

> 7-way Darlington drive, meet the demand of tea bar machine relay and stepper motor drive

> Support MCU direct push display, 16-level brightness adjustable, no need for external LED current limiting device

> Highly sensitive touch, easy to pass CS dynamic and static 10V, all pins can be configured as touch channels

System diagram
