Detail Information

PCB Type: Rigid PCB Layer: Multi Layer
Base Material: FR-4 Solder Mask: Green
Silk Screen: White Surface Treatment: Lead-free HASL
High Light:

HASL pcb assembly smt


FR-4 pcb assembly smt


White multilayer pcb fabrication

Product Description

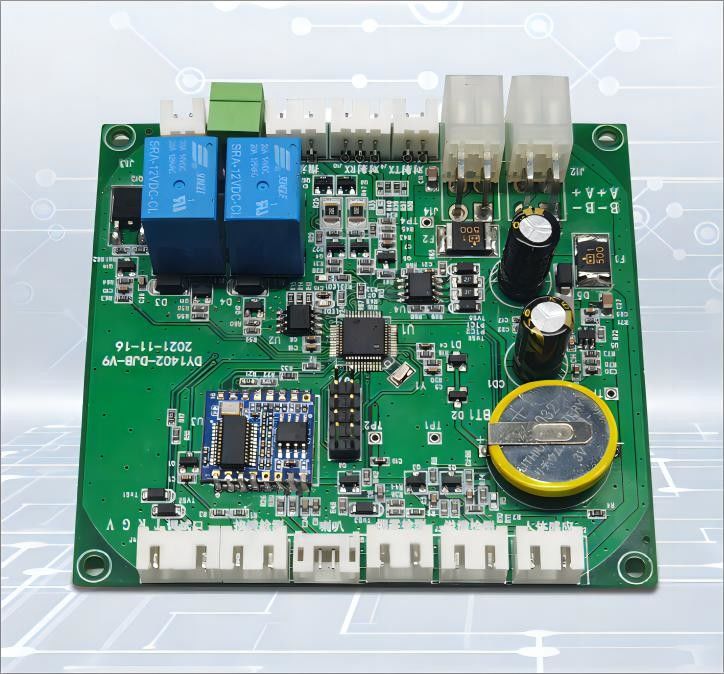

PCBA for Intelligent garbage classification control motherboard, supports human body sensing switch and digital display function



Description Capability
PCB size 90*115*40mm
Power supply 12V DC ±20%
Maximum input current 6A
Standby power consumption ≤0.5W
Operating temperature -40° C ~+85° C
RS485 indicator 1 port
Anti-pinch hand interface 1 port
Running indicator 1 port
Full indicator 1 port
Push-rod interface 1 port
Ozone interface 1 port
TTL debugging interface 1 port
Voice output interface 1 port
Human body sensing interface 1 port
Button connector 1 port
Lighting 1 port
Smoke detection 1 port
Overflow detection 1 port



The intelligent garbage sorting single machine control terminal is the application of modern data acquisition and automatic control technology, RS485 networking technology, 4G communication technology, computer application technology, Internet technology, to achieve remote equipment condition monitoring and control in one monitoring terminal.
