Detail Information

PCB Type: Rigid PCB Layer: Multi Layer
Base Material: FR-4 Solder Mask: Green
Silk Screen: White Surface Treatment: Lead-free HASL
High Light:

Multi Layer pcb assembly and manufacturing


FR-4 pcb assembly and manufacturing


HASL custom pcb production

Product Description

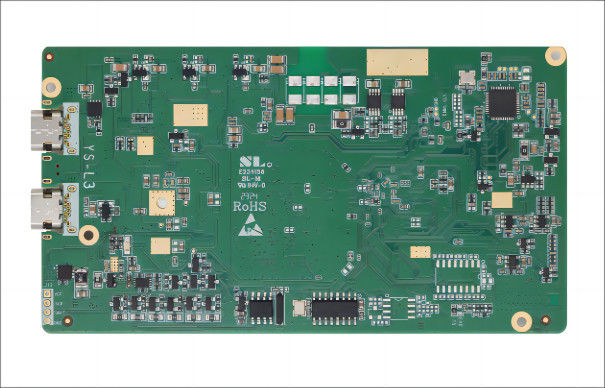

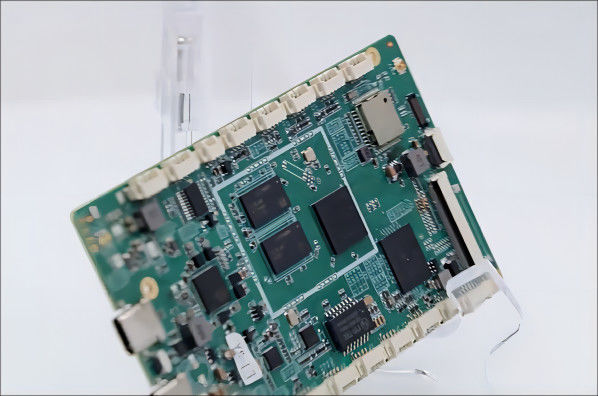

PCBA for Building intercom visitor integrated Android motherboard



Description Capability
Memory 1+16G
Digital display 4K HD display
Peripheral interface Support 100M/10M adaptive Ethernet
Support WIFI-2.4G (BT4.2 optional)
USB 2.0 host, 1 Type-C OTG, and 1 Type-C power input
1 TTL/RS485 serial ports, 1 Debug serial port 0 (TTL/RS232), 1 serial port 2 (TTL/RS232)
2 General GPIO ports
MIPI-CSI-30PIN-BMB base and camera port
MIPI-DSI-40PIN-FPC supports up to 1200*1920 output (optional)
2 I2C touch screen interface
2 LED light ports
1 POE power supply ports
1 Key ports, 2 battery ports
Support speaker interface, up to two 8Ω 5W, dual channel speaker output


Key features and functions of the PCBA include:


-- Android motherboard: The PCBA uses Android motherboard as the core processor, with high performance and stable operating environment. Android system provides a wide range of application support and development platform, so that the guest machine can run a variety of building intercom and visitor management applications.


-- Multi-function visitor management: The PCBA supports multi-function visitor management system. It can be connected to the access control system, surveillance cameras and intercom equipment, etc., to achieve visitor authentication, voice calls, video surveillance and visitor records and other functions. The user can have a real-time conversation with the visitor through the guest all-in-one, and remotely open the door.


-- Touch Screen interface: The PCBA is usually equipped with a touch screen interface to provide a user-friendly operation experience. Users can easily browse visitor information, select function options, enter passwords, etc., through the touch screen interface to achieve easy operation and navigation.


-- A variety of communication interfaces: the PCBA has a variety of communication interfaces, such as Ethernet port, Wi-Fi and Bluetooth, to achieve networking and data interaction with the building system. This allows the guest all-in-one to communicate and synchronize data in real time with the building management center, mobile phone applications, etc.


-- Scalability and customization: The PCBA can be customized according to customer needs and interface expansion. For example, you can add a face recognition module, ID card reader, fingerprint recognition module, etc., to meet specific security needs and user experience requirements.

To sum up, the PCBA uses Android motherboard technology, with powerful processing power and rich functions. It provides intelligent and multi-functional solutions for visitor management in building intercom systems, including guest authentication, voice calls, video surveillance and visitor logs. It has a touch screen interface, a variety of communication interfaces and customized expansion capabilities, and can be widely used in medical equipment, LCD advertising machines, learning and education machines, digital signage and other products.
