Application: Hotel, Commercial, Household Power Source: USB, Electric
Type: Range Hood Parts Product Name: Range Hood Control Board
Testing Service: AOI /X-Ray /100% Function Test/Aging Test Service: Sample/OEM/ODM

Product Description

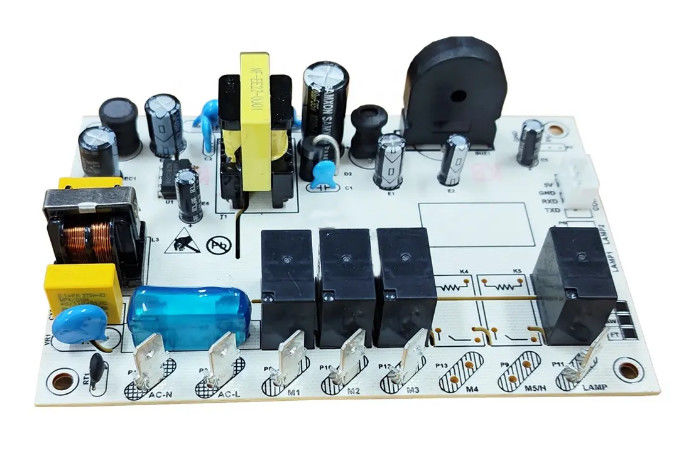

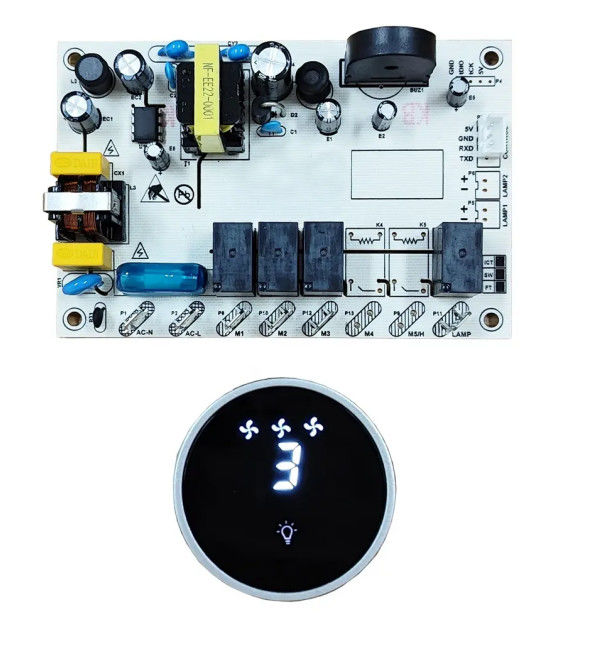

Electronic Knob Touch Switch Control Panel With Back Light Kitchen Range Hood PCB Board



Description Capability

Power

1250W

Function

Removing Cooking Fumes

Voltage

100~250V

Material

FR4 CEM1 CEM3 Hight TG





An Electronic Knob Touch Switch Control Panel with Backlight Kitchen Range Hood PCB Board refers to the manufacturing and assembly of a specialized printed circuit board (PCB) designed to control and manage the functions of a kitchen range hood. This particular PCB board is equipped with electronic knobs, touch-sensitive switches, and back lighting features. Here's a description of its features and functionalities:



PCB Design: The PCB design for the range hood control board includes the necessary circuitry to control and manage the various functions of the range hood. It incorporates components such as micro controllers, sensors, switches, display panels, and connectors. The design is tailored to accommodate the electronic knobs, touch-sensitive switches, and back lighting features.



Control Knobs: The PCB design includes circuitry to interface with electronic knobs. These knobs allow users to adjust parameters such as fan speed, timer settings, and lighting intensity. The PCB translates the rotational input from the knobs into appropriate control signals for the range hood.



Touch-Sensitive Switches: The PCB design incorporates touch-sensitive switches for controlling various functions of the range hood. These switches provide a convenient and intuitive user interface. Users can activate or deactivate the range hood, adjust fan speed, control lighting, and access other features by simply touching the corresponding switch areas on the control panel.



User Interface: The PCB design incorporates a user interface that integrates the electronic knobs, touch-sensitive switches, and back lighting. The interface may also include an LCD display or LED indicators to provide information and feedback to the user. It displays the selected fan speed, lighting status, timer settings, and other relevant information.



Control Algorithms: The PCB design may incorporate control algorithms that enable intelligent and efficient operation of the range hood. These algorithms can adjust fan speeds based on cooking activity or air quality, optimize power consumption, and provide advanced features such as auto-shutoff or delayed start.



Safety Features: The PCB design incorporates safety features to ensure the safe operation of the range hood. It may include over current protection, over voltage protection, short circuit protection, and temperature monitoring mechanisms. These protections safeguard the range hood's components and prevent potential hazards.
