Detail Information

Base Material: FR-4/high TG/CEM-1/Rogers/PTFE/Aluminum Board Thickness: 0.6mm/ 0.8mm/ 1.0mm/ 1.2mm/ 1.6mm/ 2.0mm/ 2.4mm
Copper Thickness: 1oz - 5oz / 35um - 175um Product Name: PCB PCBA Assembly Manufacturer
Application: Electronic Products Sample/OEM/ODM: Acceptable

Product Description

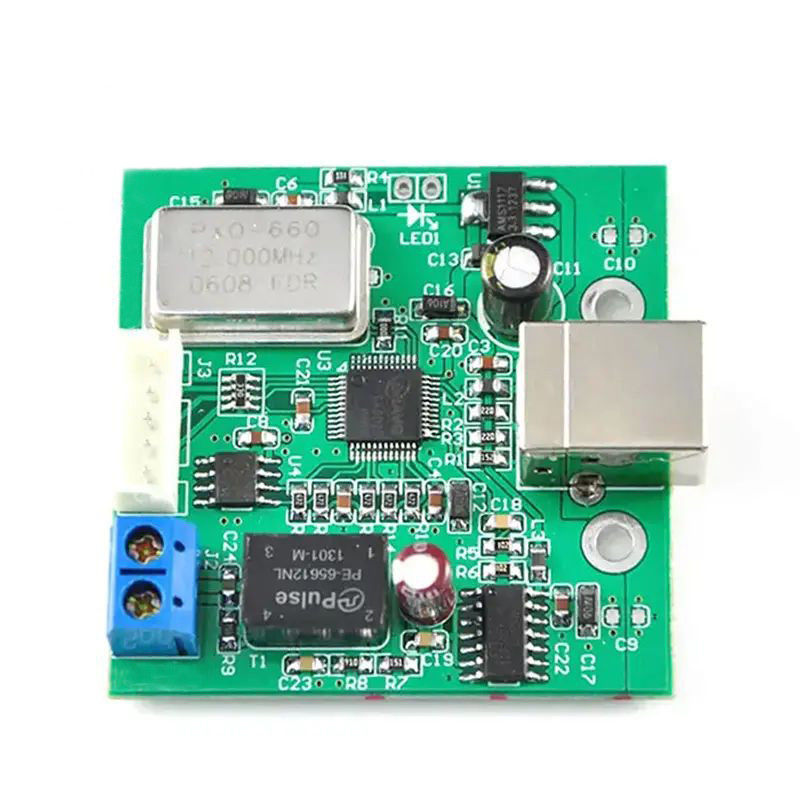

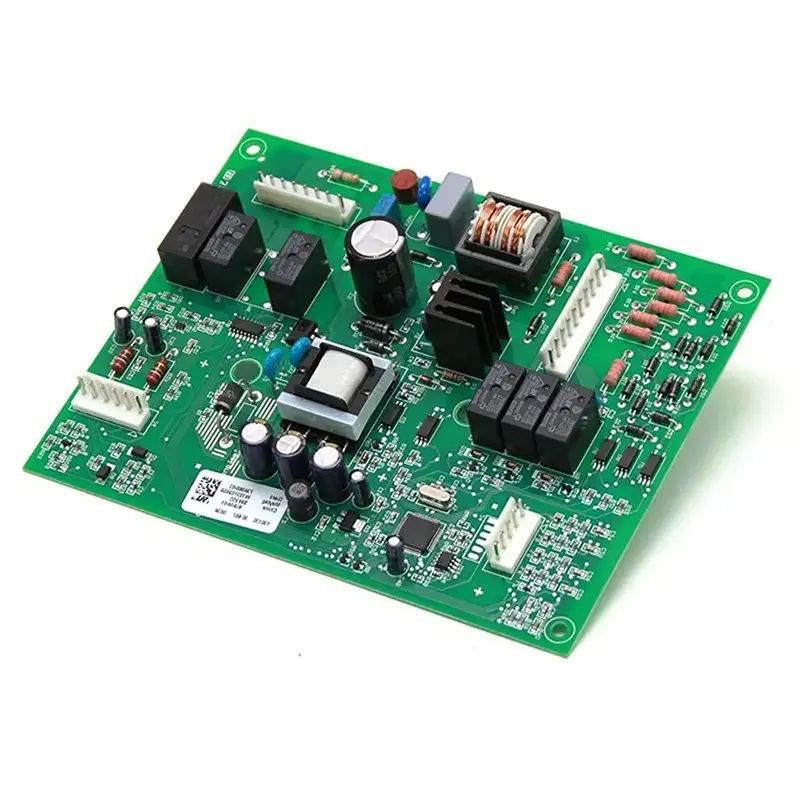

PCB Gerber OEM Custom PCBA Assembly Manufacturer Induction Cooker Circuit Board.



Description Capability

Min. Hole Size

0.1mm(4mil)for HDI / 0.15mm(6mil)

Min. Line Width

0.075mm (3miL)

Min. Line Spacing

0.075mm (3miL)

Surface Finishing

HASL/OSP/ENIG/IMS/IMT

Board Size

Custom size

PCBA Service

SMD SMT DIP Component Assembly

Testing Service

100% AOI Testing/ICT/FCT Test/E-Test

Board Thickness

0.6mm/ 0.8mm/ 1.0mm/ 1.2mm/ 1.6mm/ 2.0mm/ 2.4mm



A PCB Gerber OEM custom PCBA assembly manufacturer for an induction cooker circuit board refers to a company that specializes in producing and assembling printed circuit boards (PCB s) based on custom Gerber files for induction cooker applications. Here's a description of the process and features involved in manufacturing such a PCB assembly:



Custom PCB Gerber Design: The manufacturing process begins with the custom PCB Gerber design. The design is created based on the specific requirements of the induction cooker circuit board. It includes the placement and routing of components, signal traces, power planes, and other necessary circuitry.



OEM Manufacturing: The manufacturer operates as an original equipment manufacturer (OEM), which means they produce the PCB assembly based on the design specifications provided by the client. The OEM manufacturer ensures that the design is implemented accurately and meets the required standards and specifications.



Component Sourcing: The manufacturer sources the required components for the induction cooker circuit board. These components may include micro controllers, power electronics, capacitors, inductors, resistors, sensors, and other electronic components. The manufacturer ensures that the components are of high quality and meet the specified requirements.



PCB Manufacturing: The manufacturer produces the PCB s based on the custom Gerber files. This involves processes such as printing the PCB design onto a copper-clad board, etching to remove excess copper, drilling holes for component placement, and applying solder mask and silkscreen layers. The PCB manufacturing process ensures the precise implementation of the circuit design.



Surface Mount Technology (SMT) Assembly: The manufacturer uses SMT assembly techniques to mount the components onto the PCB. SMT involves the use of automated pick-and-place machines to accurately place the surface-mount components onto the PCB. This process ensures efficient and precise assembly while minimizing manual errors.



Through-Hole Assembly: In addition to SMT components, some components with through-hole leads may be required for the induction cooker circuit board. The manufacturer uses through-hole assembly techniques to mount these components onto the PCB. This may involve manual soldering or automated wave soldering processes.
