Detail Information

PCB Type: Rigid PCB Layer: Multi-layer
Base Material: FR-4 Solder Mask: Green
Silk Screen: White Surface Treatment: HASL
High Light:

HASL industrial pcb


industrial pcb FR4


Green multilayer pcb fabrication

Product Description

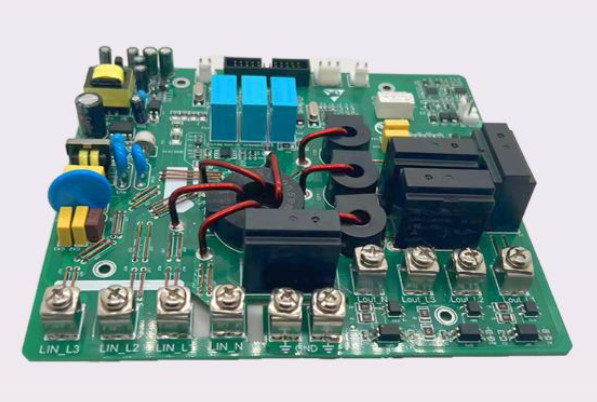

PCBA for new energy vehicle charging pile 11kw with GB mode three and three-phase power 16A power supply supports Wifi, bluetooth networking


Description Capability
PCB size 168*152mm
Operating temperature -25° C ~85 ° C
Working voltage L1+L2+L3+N+PE
Charging power 4KW~11KW
Charging mode 6A~16A (adjustable)
Display size 3.5 inches, 4.3 inches
Indicator light 16 RGB lights
Electricity metering Support
Protection function over voltage/over current/leakage/over temperature
Networking mode WIFI/ Bluetooth
Credit card anti-theft Support (ISO14443 standard card)


This new energy vehicle charging pile 11kW GB mode three three-phase 16A power supply motherboard is designed for the core components of the charging pile.


-- The operating temperature range of the motherboard is -25℃ to 85℃. This means that it can operate normally at lower temperatures, while also maintaining stable performance in high temperature environments.


-- The mainboard supports L1, L2, L3, N, and PE five-wire power inputs. This power supply configuration meets the requirements of the national standard mode of three-phase power supply, providing stable and reliable power output.


-- The motherboard supports 4kW to 11kW charging power output. This means that it can adapt to different models of new energy vehicles, providing them with the appropriate charging power.


-- Charging mode: The motherboard supports 6A to 16A charging current output range, and can be adjusted arbitrarily within this range. This flexibility allows the charging pile to adapt to the charging needs of different vehicles.


-- The motherboard supports two sizes of 3.5-inch and 4.3-inch display, equipped with 16 RGB lights, supports the power meter function, can accurately record the power consumption of the charging pile, convenient for users to manage and charge power.


-- The motherboard integrates over-voltage, over-current, leakage and over-temperature protection functions to ensure the safety and reliability of the charging pile.


-- The motherboard supports networking through WIFI or Bluetooth so that the charging pile can interact with other devices or platforms for data and remote control.


-- Swipe card anti-theft: the motherboard supports ISO14443 standard card swipe anti-theft function, can provide additional security.


In general, this PCBA has a wide range of functions and protection measures, suitable for a variety of charging pile application scenarios. Specific design and functional details may vary depending on customer requirements, details can be consulted.
