Detail Information

PCB Type: Rigid-flex PCB Layer: Multi-layer
Material: FR-4, PI Solder Mask: Green, Yellow Coverlay
Silk Screen: White Surface Treatment: Lead-free HASL, ENIG
High Light:



Rigid Flex PCBA


PI rigid pcb board

Product Description

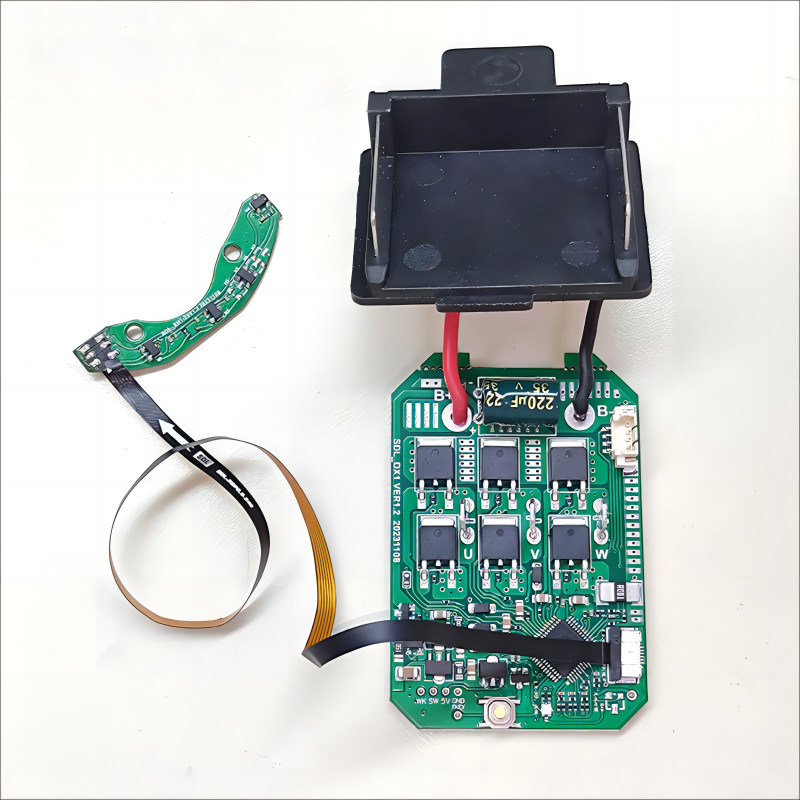

Rigid-Flex PCBA For Electric Pruner With LED Indicator, Key Switch And Trigger Function


Description Capability
Power supply 5 lithium batteries, independent battery pack
Maximum working power 300W
Standby power consumption <5uA
Buttons/switches 2 tap switches +1 trigger switch
Indicator Power indicator, status indicator


The PCBA can drive the three-phase low-voltage permanent magnet synchronous motor, and the software adopts SVPWM space voltage vector modulation technology, which has a smaller harmonic fraction and torque ripple. Start does not reverse, with locked-rotor protection, overcurrent protection function.


The PCBA solution adopts 32-bit high-speed MCU chip as the main control, which provides guarantee for starting algorithm operation, driving algorithm operation, speed improvement and torque adjustment accuracy. At the same time, 3P+3N driver is built in and peripheral components are reduced. With low noise, low loss, smooth operation, long service life, stepless speed regulation and other technical advantages, to provide customers with cost-effective, stable and reliable program choice.
