Type: OEM PCBA Copper Thickness: 1 Oz
Supplier Type: OEM Product Name: GT PCB&PCBA OEM Service
Layer Count: 1 To 28 Layers Material Type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

Product Description

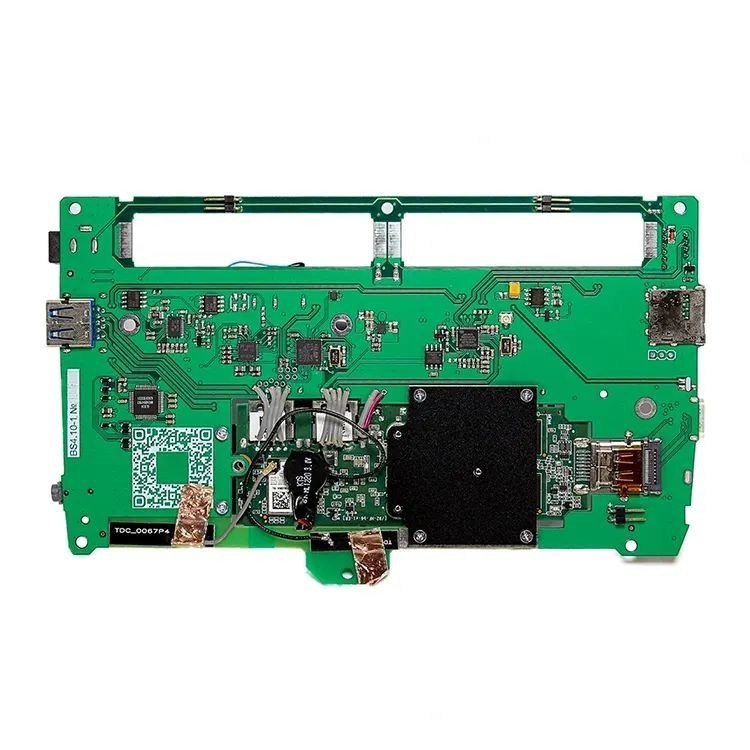

PCBA Prototype Assembly Electric Air Fryer Control Board for Household toaster machine.



Description Capability

Surface finishing

HASL / HASL lead free, Immersion Silver/Gold, OSP, Gold plating

Profiling

Punching, Routing, V-CUT, Beveling

Service

One Stop OEM services provided

Application

Communications, automobile, consumer electronics

Material type

FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers



PCBA prototype assembly for an electric air fryer control board for a household toaster machine involves the creation of a functional prototype for the control board that operates the air frying functions of the appliance. Here's a description of the key aspects of PCBA prototype assembly for an electric air fryer control board:



Prototype Design: The control board prototype is designed to control the various functions of the electric air fryer. This includes temperature control, cooking time settings, fan speed control, safety mechanisms, and any specific requirements of the toaster machine. The design focuses on creating a user-friendly interface and efficient control of the air frying process.



Component Selection: Carefully selected electronic components are used in the prototype assembly. These components include micro-controllers, sensors, power management ICs, capacitors, resistors, connectors, and other necessary parts. The components are chosen based on their performance, compatibility, and suitability for the air frying functions of the toaster machine.



PCB Manufacturing: The prototype PCB is manufactured using advanced techniques. This includes the fabrication of the PCB with a copper layer, etching to create circuit traces, and the application of solder mask and silkscreen layers. High-quality materials and precise manufacturing processes are employed to ensure the durability and reliability of the PCB.



Surface Mount Technology (SMT) Assembly: The assembly of surface-mount components onto the PCB is carried out using SMT techniques. Automated pick-and-place machines accurately position the components, and solder paste is applied to create strong electrical connections. The PCB is then heated in a reflow oven to melt the solder paste and form secure solder joints.



Quality Control and Testing: Stringent quality control measures are implemented during the prototype assembly process. Visual inspections, automated optical inspection (AOI), functional testing, and electrical testing are conducted to ensure the reliability and functionality of the control board. These procedures help identify and rectify any defects or issues.



Safety Features: The control board prototype incorporates safety features to ensure the safe operation of the electric air fryer. This may include over current protection, over voltage protection, short circuit protection, and temperature sensing mechanisms. The safety features are designed to protect the appliance and its users from potential hazards.
