Detail Information

PCB Type: Rigid PCB Layer: Multi-layer
Base Material: FR-4 Solder Mask: Black
Silk Screen: White Surface Treatment: Lead-free HASL
High Light:

FR-4 PCB Factory

,

Multi layer PCB Factory

,

HASL pcb multi layer

Product Description

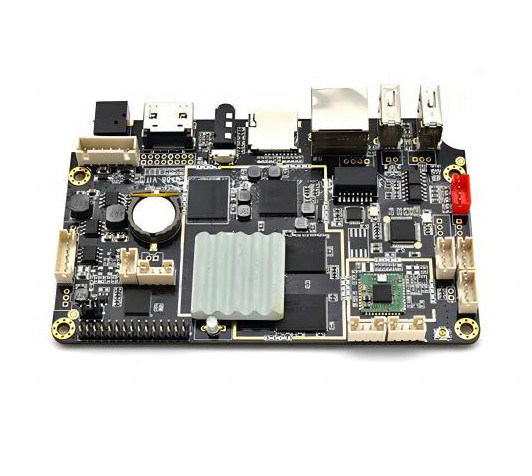

Hot Selling PCB Factory Air Conditioner PCBA/ Air Purifier PCBA



Description Capability

Type

Smart electronics PCBA

Supplier Type Custom made

Copper thickness

1oz

PCB Assembly process

SMT



Air Conditioner PCBA (Printed Circuit Board Assembly) and Air Purifier PCBA are essential components that enable the functionality and control of these devices. Here's a description of each:



Air Conditioner PCBA: The Air Conditioner PCBA is responsible for controlling the various functions of an air conditioning unit. It typically consists of several key components:



-- Micro-controller/Processor: The heart of the PCBA, the micro-controller or processor, executes the software and algorithms that control the air conditioning unit's operation. It receives inputs from the user interface, sensors, and other components, and sends appropriate signals to control the compressor, fan motors, and other electrical systems.



-- Power Supply: The power supply circuitry ensures that the PCBA receives a stable and regulated power supply. It converts the incoming AC power to appropriate DC voltages required by the components on the PCBA.



-- User Interface: The user interface components, such as buttons, switches, and displays, enable users to interact with and control the air conditioning unit. The PCBA processes user inputs and provides feedback through the display or other indicators.



-- Communication Interfaces: Some air conditioner PCBAs may include communication interfaces, such as Wi-Fi or Bluetooth, allowing for remote control and connectivity with other devices or smart home systems.



-- Motor Control: The PCBA includes circuitry to control the compressor motor and fan motors, enabling them to operate at different speeds and configurations to regulate the airflow and temperature.



Air Purifier PCBA: An Air Purifier PCBA controls the functions of an air purifier, which aims to improve indoor air quality by removing pollutants, allergens, and odors. The PCBA typically includes the following components:



-- Micro controller/Processor: Similar to the air conditioner PCBA, the microcontroller or processor on the air purifier PCBA executes the control software and algorithms. It receives inputs from sensors and user interface components and controls the operation of the air purifier.



-- Power Supply: The power supply circuitry ensures that the PCBA receives the appropriate power to operate the air purifier. It may include voltage regulation and protection circuits.



-- Filter Monitoring: The PCBA monitors the status and condition of the air purifier's filters, such as HEPA filters or activated carbon filters. It provides indicators or alerts to notify users when the filters need replacement or cleaning.



-- User Interface: The user interface components, such as buttons, switches, and displays, allow users to control and monitor the air purifier's settings and status. The PCBA processes user inputs and provides feedback through the display or other indicators.
