Detail Information

PCB Type: Rigid PCB Layer: Multi-layer
Base Material: FR-4 Solder Mask: Green
Silk Screen: White Surface Treatment: Lead-free HASL
High Light:

Multi layer diffuser circuit board

,

FR4 diffuser circuit board

,

HASL elecrow pcb

Product Description

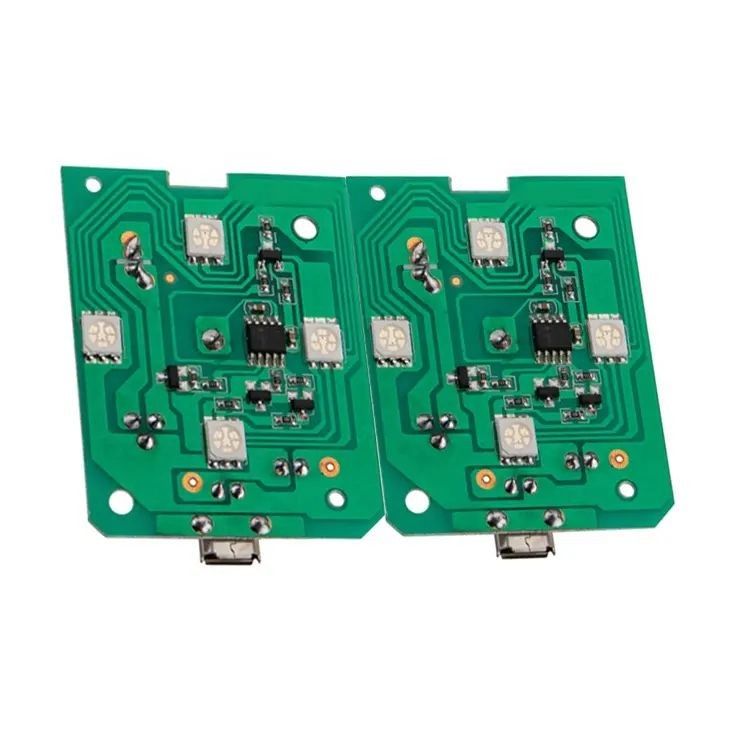

Design Hotel Home Aromatherapy Machine Drive PCB Aroma Diffuser Circuit Board Electric Heating Liquid Mosquito Coil PCBA



Description Capability

Testing service

AOI X-Ray Function Test

Board thickness 1.6mm

Sample/OEM

Support

Copper thickness

2 oz

Input

QC/PD



The design of a hotel or home aromatherapy machine drive PCB, which incorporates an aroma diffuser circuit board and an electric heating liquid mosquito coil PCBA, involves creating a specialized circuit board that enables the operation of both functionalities. Here's a description of the key aspects of this design:

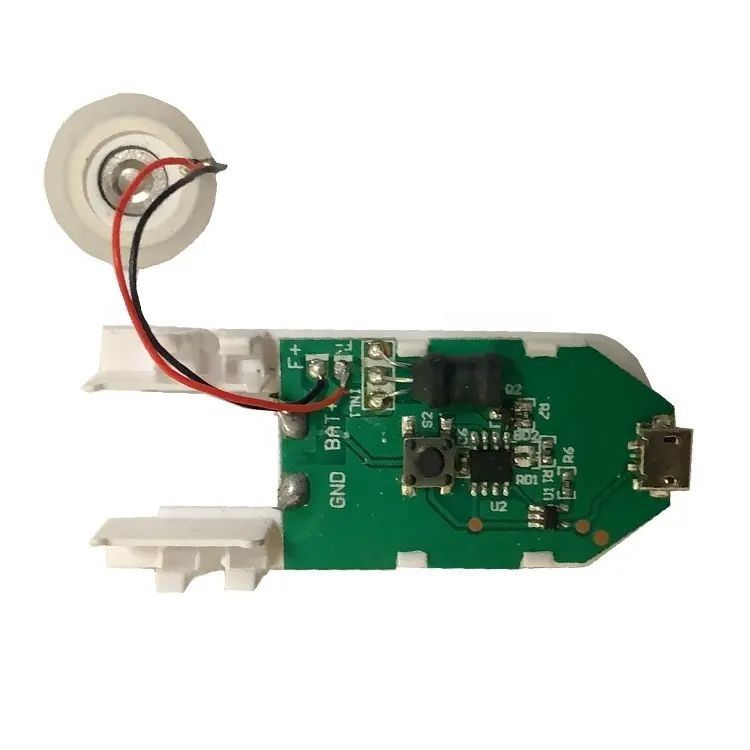

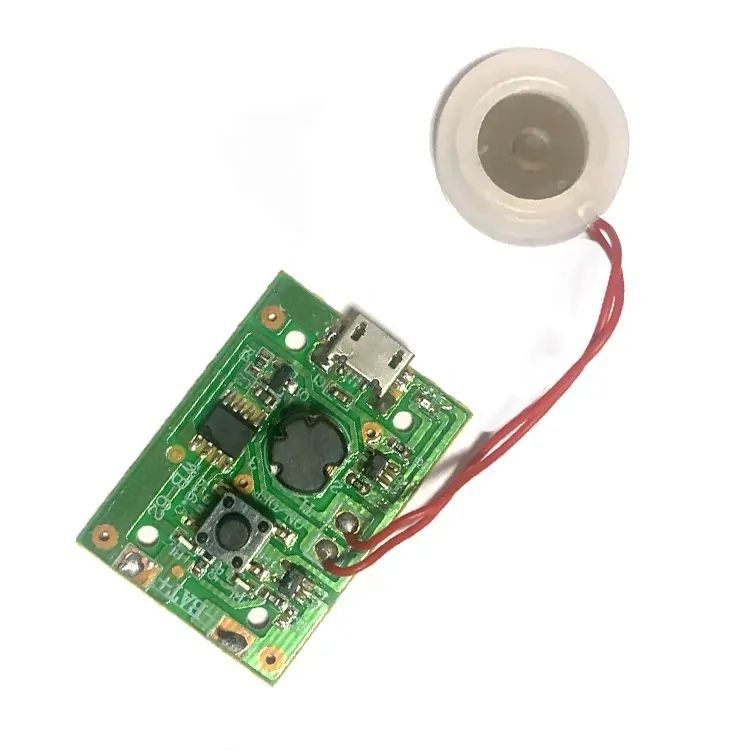

Aroma Diffuser Circuit Board: The aroma diffuser circuit board is responsible for controlling the aroma diffusion functionality of the device. It typically includes a micro-controller or other control circuitry that regulates the release of aromatic scents. The PCB may have features such as adjustable settings, timers, and intensity control to provide flexibility and customization for the user.



Electric Heating Liquid Mosquito Coil PCBA: The electric heating liquid mosquito coil PCBA is designed to enable the heating and vaporization of a liquid mosquito repellent. It includes components such as a heating element, temperature control circuitry, and sensors. The PCB controls the heating process to generate heat and vaporize the liquid mosquito coil, releasing the repellent into the air.



Power Management: The PCB incorporates power management circuitry to efficiently manage the power supply for both the aroma diffuser and the electric heating liquid mosquito coil. This may include voltage regulation, current control, and protection mechanisms to prevent overloading or damage to the device. It may also include power-saving features or battery management capabilities if the device operates on battery power.
