Detail Information

PCB Type: Rigid PCB Layer: Multi-layer
Base Material: FR-4 Solder Mask: Green
Silk Screen: White Surface Treatment: Lead-free HASL
High Light:

FR4 european pcb manufacturer


Green european pcb manufacturer


Multi layer gerber in pcb

Product Description

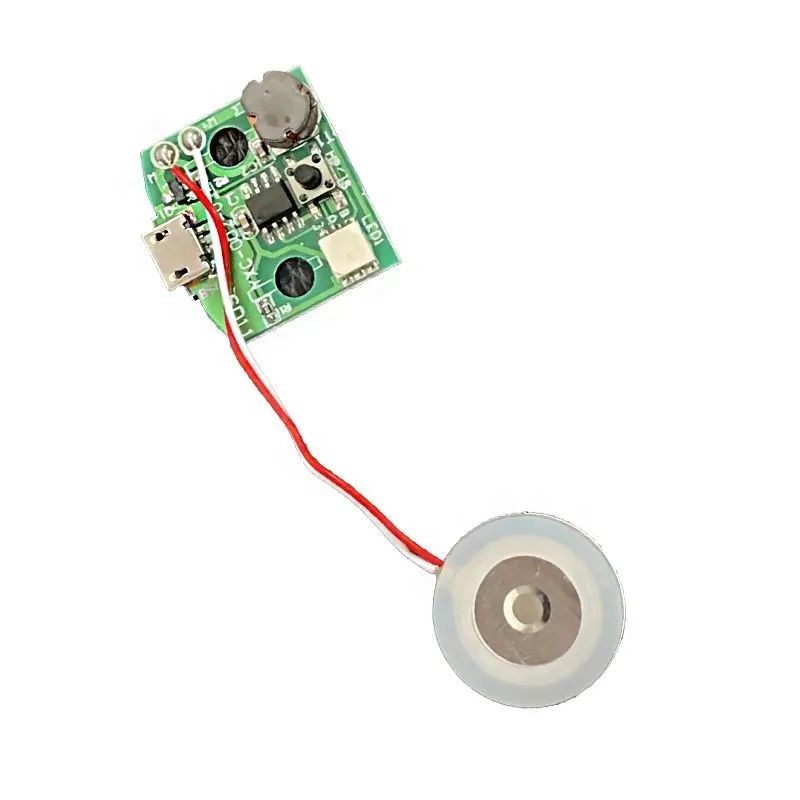

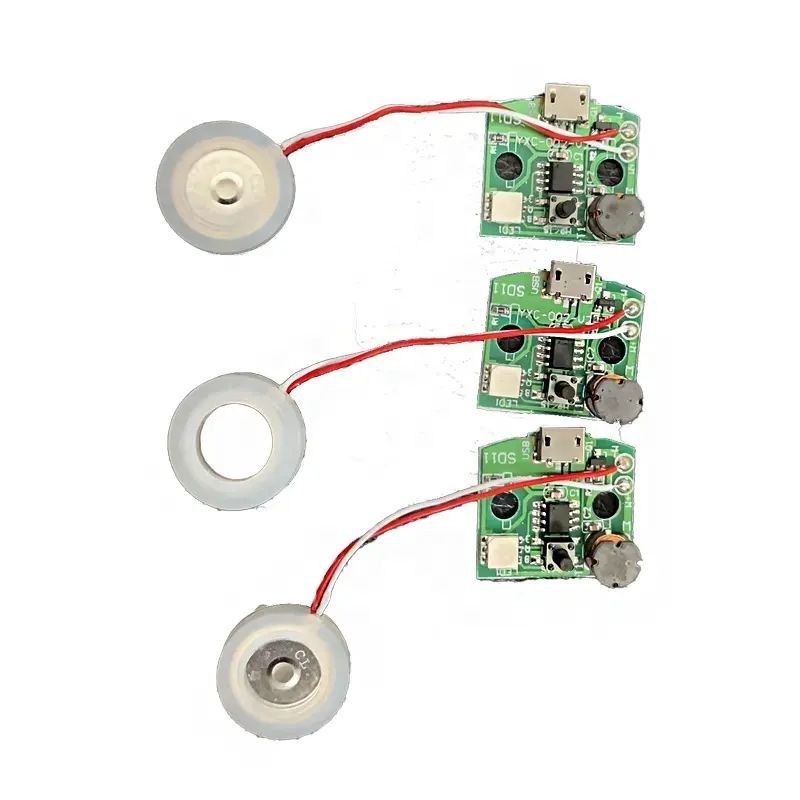

OEM/ODM Control Circuit Drive Board 200ml Humidifier Diffuser Atomizer Atomizer PCBA Seven-Color Light


Description Capability

Testing service

AOI X-Ray Function Test

Board thickness 1.6mm



Copper thickness

1 oz


The Factory OEM/ODM control circuit drive board for a 200ml humidifier diffuser atomizer with a seven-color light PCBA refers to a specialized circuit board designed to control the operation of a humidifier and diffuser atomizer unit. Here's a description of the key aspects of this design:


Control Circuit: The control circuit forms the core of the PCB and is responsible for managing the overall operation of the humidifier and diffuser atomizer. It typically includes a micro-controller or other control components that regulate various functions, such as mist generation, humidity control, and LED lighting.


Humidity Control: The control circuit monitors and controls the humidity level in the environment. It may include sensors to measure the humidity and adjust the mist generation accordingly. The PCB regulates the operation of the humidifier to maintain the desired humidity level, ensuring optimal comfort and air quality.


Atomizer Functionality: The PCB controls the atomizer function, which generates a fine mist by breaking down water or a water-based solution into tiny droplets. It includes circuitry to drive the atomizer element, such as an ultrasonic transducer or a nebulizer, to create the mist. The control circuit ensures efficient and consistent atomization for effective humidification and diffusion of scents.


Power Management: The PCB incorporates power management circuitry to efficiently manage the power supply for the humidifier, atomizer, and LED lighting. This may include voltage regulation, current control, and protection mechanisms to prevent overloading or damage to the device. It may also include power-saving features to optimize energy consumption.
