Detail Information

Type: Energy Storage Power PCBA Copper Thickness: 1 Oz
Supplier Type: Manufacturer Product Name: 2000W Portable Energy Storage Power Supply Portable Energy Storage PCB
Service: One-stop Service Power: 2000W
High Light:

1oz custom made pcb

,

PCBA custom made pcb

,

1oz pcb fabrication assembly

Product Description

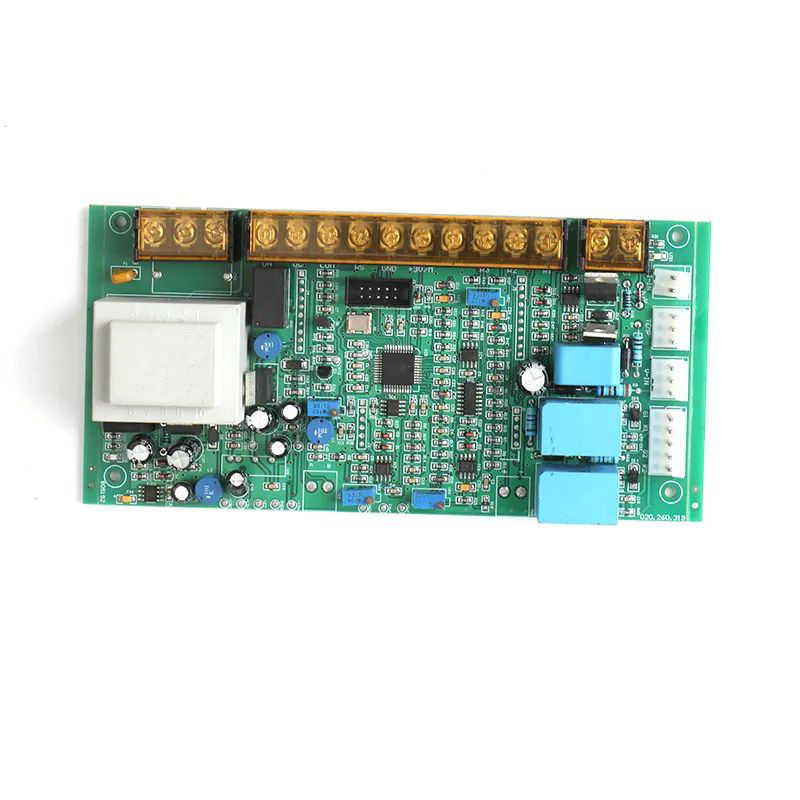

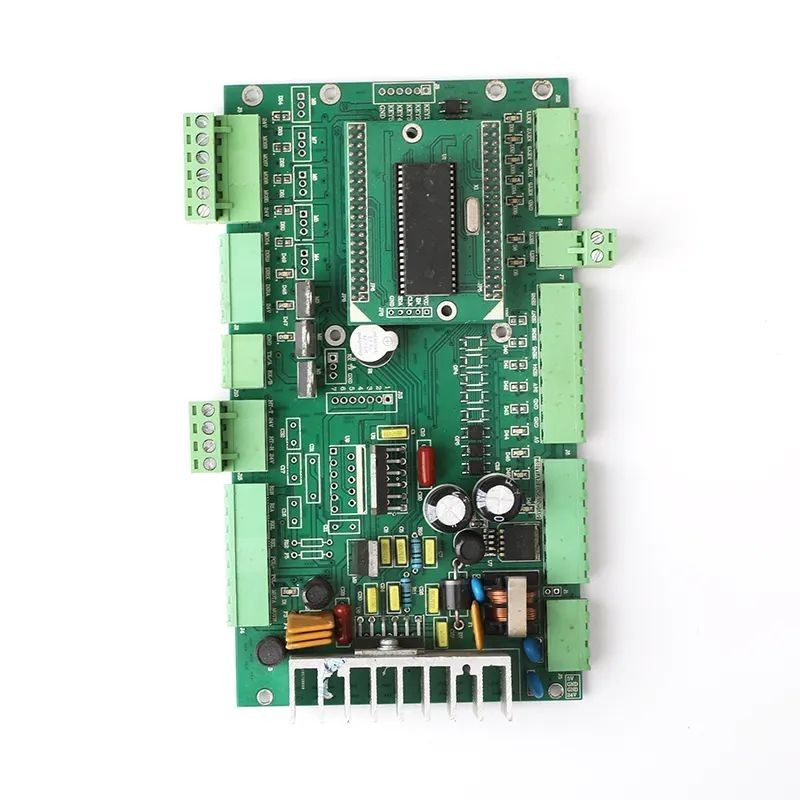

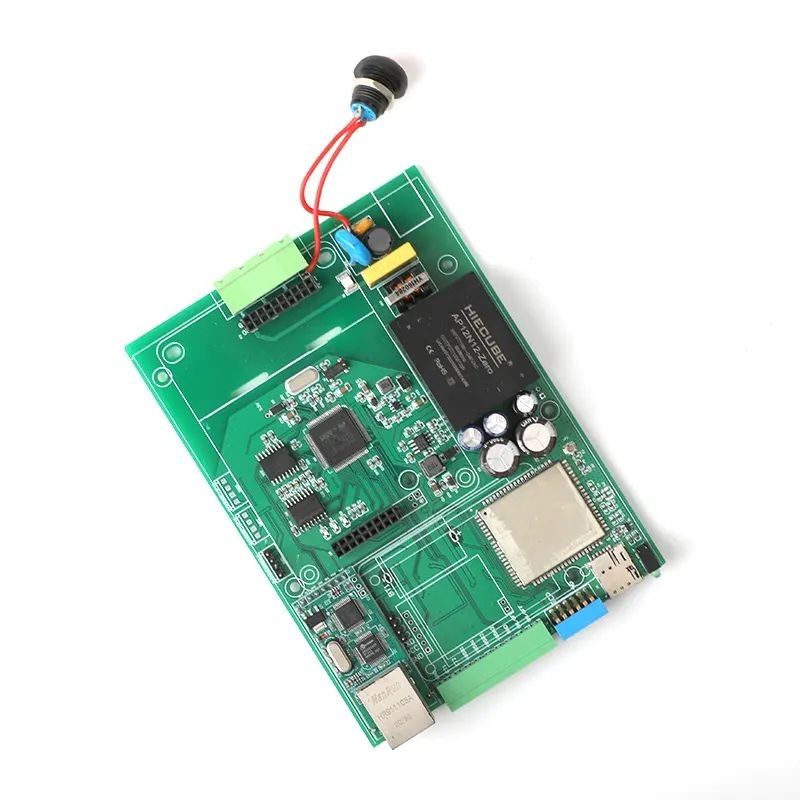

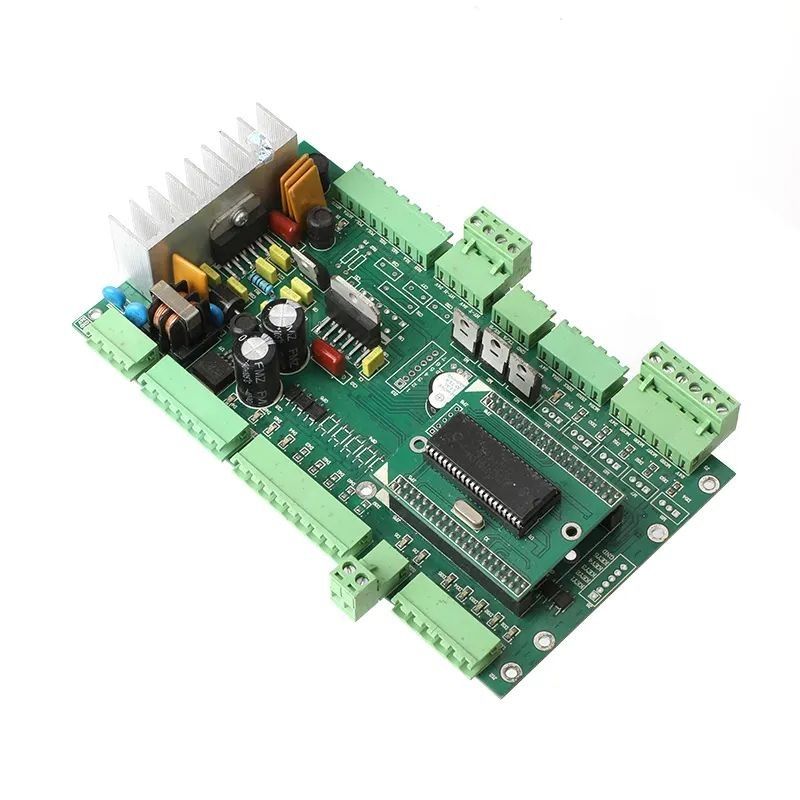

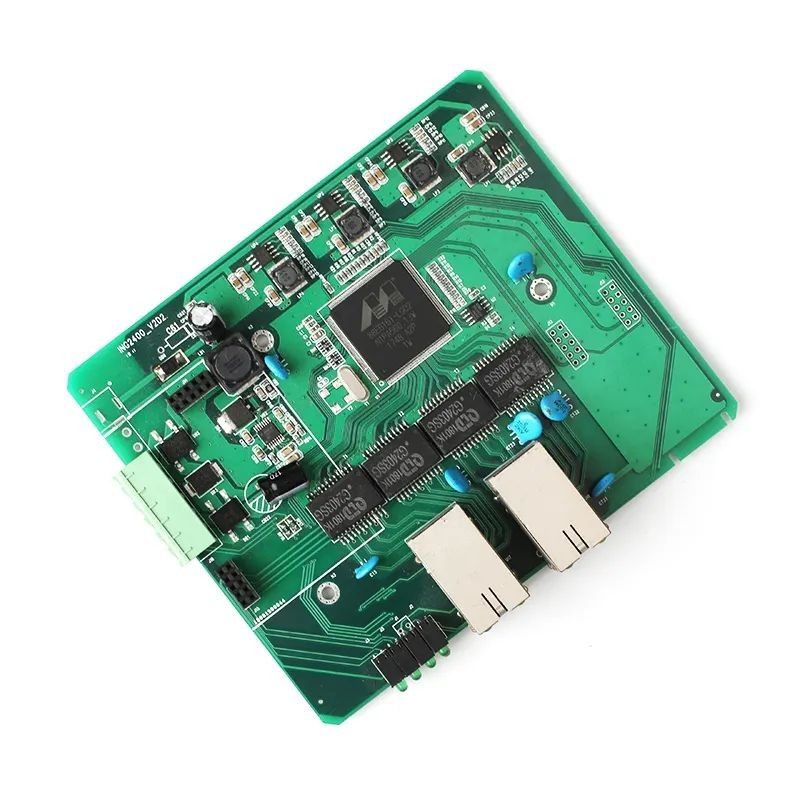

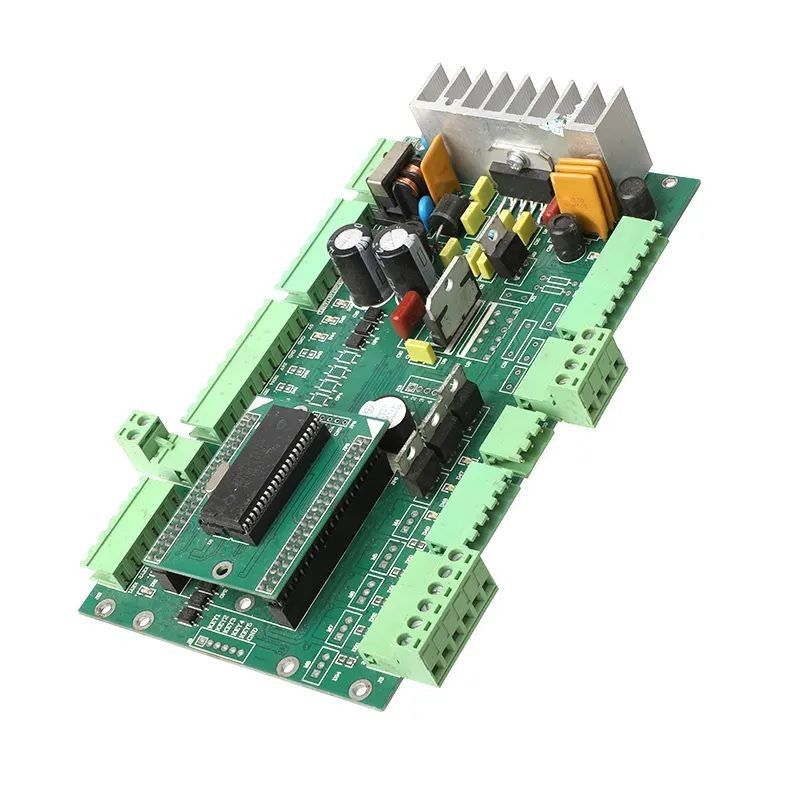

2000W Portable Energy Storage Power Supply Portable Energy Storage PCBA.



Description Capability

Power

2000W

Service

One-stop Service

Product name

2000W Portable Energy Storage Power Supply Portable Energy Storage PCB

Supplier Type

Manufacturer

Copper Thickness

1 oz

Type

Energy storage power PCBA





A 2000W Portable Energy Storage Power Supply PCB (Printed Circuit Board Assembly) is a crucial component in a portable energy storage system that provides a high-power output for various applications. Here's a description of its features and functionalities:



Power Conversion and Regulation: The PCB incorporates power conversion and regulation circuitry to efficiently convert the stored energy from the battery into usable power. This typically involves employing power electronics components such as inverters, converters, voltage regulators, and filters. The circuitry ensures stable and clean power output, suitable for powering devices and appliances that require up to 2000W of power.



Lithium Battery Integration: The PCB design integrates lithium battery cells suitable for high-power applications. Lithium batteries are chosen for their high energy density and rechargeable nature. The manufacturer selects and configures the appropriate lithium battery cells and incorporates battery management circuitry. This includes protection, charging, and balancing mechanisms to ensure safe and optimal performance of the battery.



AC and DC Outlets: The PCB design incorporates AC and DC outlets to provide convenient connectivity for devices and appliances. It may include standard AC power outlets, USB ports, DC barrel jacks, or other specialized connectors. The manufacturer ensures proper wiring, protection mechanisms, and isolation to prevent overloading, short circuits, or electrical interference.



Safety and Protection: Safety is a top priority in designing the PCB for a high-power portable energy storage system. The manufacturer implements comprehensive safety features, such as overcurrent protection, over voltage protection, short circuit protection, and temperature monitoring. These protections safeguard the battery, connected devices, and users from potential hazards.



User Interface and Controls: The PCB design may include user interface components such as buttons, switches, displays, or indicator lights. These components allow users to interact with the power supply, monitor its status, and adjust settings such as output voltage or current limits. The PCB processes user inputs and provides visual or audible feedback as necessary.
