SMT (Surface Mount Technology) processing is a common electronic component mounting technique used to solder surface-mounted components onto a printed circuit board (PCB). The SMT processing typically involves the following steps:


1. PCB Preparation: The PCBs are prepared for the SMT process. This involves cleaning and inspecting the PCBs to ensure their surfaces are smooth, free from dirt, and undamaged.

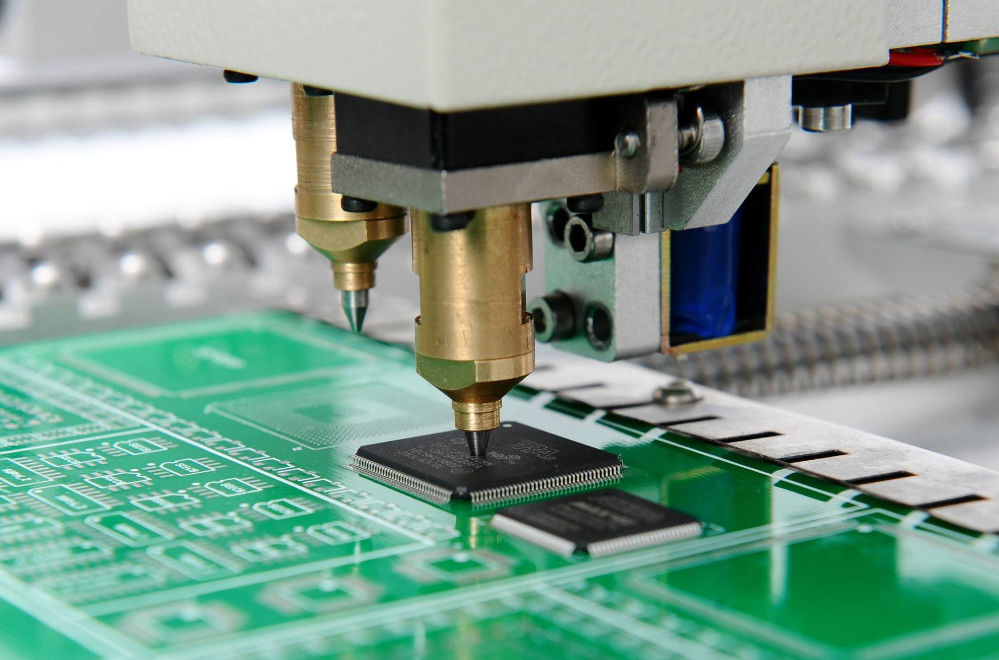

2. Component Placement: Using automated pick-and-place machines, electronic components are accurately placed onto the PCB. The pick-and-place machine retrieves components from feeders and positions them onto the PCB using a vision recognition system. The components are held in place using adhesive or solder paste.


3. Reflow Soldering: Once the components are placed, the PCB is transferred to a reflow oven. The reflow oven subjects the PCB to controlled temperature profiles. The high temperature melts the solder paste, creating a solder joint that connects the components to the PCB. The PCB is then rapidly cooled to solidify the solder joints.


4. Inspection: After soldering, the PCB undergoes inspection to ensure the quality of the solder joints and component placement. This can involve visual inspection, automated optical inspection (AOI), or X-ray inspection to detect any defects or misalignments. Any identified issues may require rework or component replacement.


5. Cleaning: If necessary, the PCB is cleaned to remove flux residues or contaminants left from the soldering process. Cleaning can be performed using various methods such as ultrasonic cleaning or aqueous cleaning, depending on the specific requirements and standards.


6. Testing: The assembled PCB may undergo functional testing or electrical testing to validate its performance and functionality. This can involve automated test equipment (ATE) or other test methods to ensure the PCB meets the required specifications.


7. Final Assembly: After testing, the PCB may proceed to final assembly, where additional components, such as connectors, switches, or enclosures, are added to complete the product.


It's important to note that the specific steps and processes involved in SMT processing can vary depending on the equipment, product requirements, and manufacturing facility. The goal of SMT processing is to efficiently and reliably mount surface-mounted components onto PCBs, enabling the production of electronic devices.
