Detail Information

Type: PCBA Copper Thickness: 1/2OZ 1OZ 2OZ 3OZ
Supplier Type: OEM PCBA Board Thickness: 1.6mm
Base Material: FR-4/aluminum/ceramic/cem-3/FR-1
High Light:

3OZ pcb assembly

,

2OZ pcb assembly

,

1/2OZ pcb assembly manufacturing

Product Description

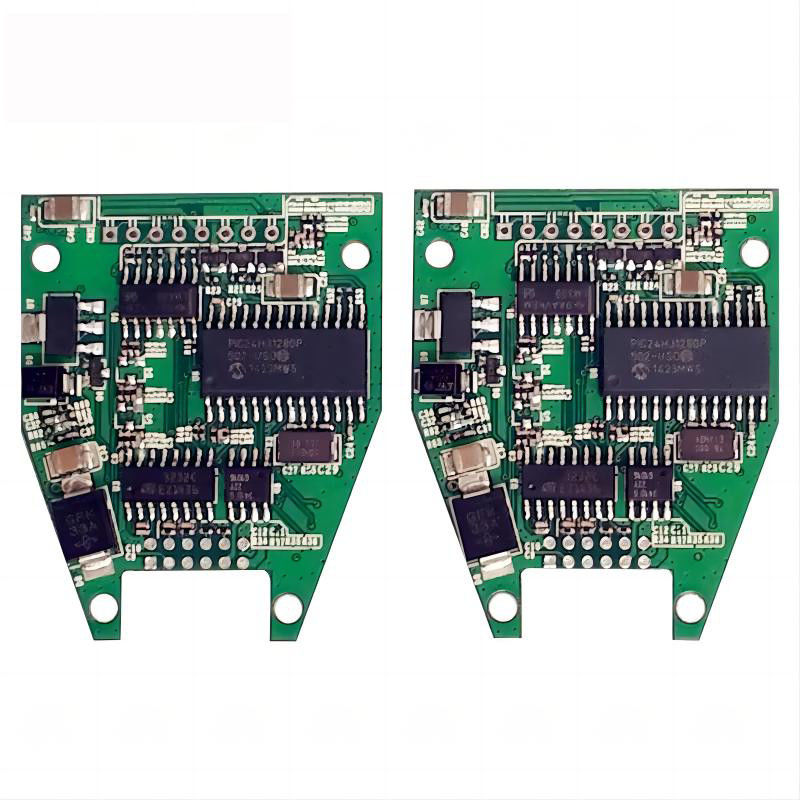

PCB Assemble Manufacturing in China for electric iron.



Description Capability

Testing Service

AOI X-Ray Function Test

Service

PCB design/SMT/DIP/Component purchase

Application

GPS GSM GPRS development board

Surface

Finishing HASL

Base Material

FR-4/aluminum/ceramic/cem-3/FR-1

Board Thickness

1.6mm

Copper Thickness

1/2OZ 1OZ 2OZ 3OZ





PCB assembly manufacturing for electric irons involves the production and assembly of printed circuit boards (PCBs) that control the functionality of the electric iron. Here's a description of the process and considerations involved in PCB assembly manufacturing for electric irons:



PCB Design: The first step in PCB assembly manufacturing is the design of the PCB layout. This involves creating a schematic diagram that represents the electrical connections and components of the electric iron's control system. The layout designer then translates the schematic into a physical PCB design, determining the placement of components and the routing of traces on the board.



Component Sourcing: Once the PCB design is finalized, the next step is to source the necessary components. This includes electronic components such as micro controllers, power supply components, temperature sensors, heating element drivers, user interface components, and other required parts. Manufacturers typically work with various suppliers to procure high-quality components for the assembly.



PCB Fabrication: After the components are sourced, the PCBs themselves need to be manufactured. The PCB fabrication process involves producing the actual circuit boards according to the PCB design. This includes processes like printing the circuit pattern onto the board, etching, applying solder mask and silkscreen layers, and drilling holes for component placement. PCB manufacturers have specialized equipment and facilities to perform these fabrication processes accurately and efficiently.



Component Placement: Once the PCBs are fabricated, the next step is component placement. This is done either manually or using automated equipment depending on the scale of production. Skilled technicians or pick-and-place machines carefully place the components onto the PCB according to the design specifications.



Soldering: After component placement, the PCB goes through the soldering process to secure the components onto the board. This is typically done using reflow soldering, where the PCB is passed through a high-temperature oven that melts the solder paste and establishes the electrical connections between the components and the PCB.
