Model: Household Appliances PCBA Type: Household Appliances PCBA
Copper Thickness: 1 Oz Supplier Type: Manufacturer
Product Name: PCB Smart Factory Vacuum Cleaner Home Appliances Electric Iron Rigid F Service: One-stop Service
High Light:

Home Appliances Flex PCB Board

,

1oz Flex PCB Board

,

Rigid PCB Assembly

Product Description

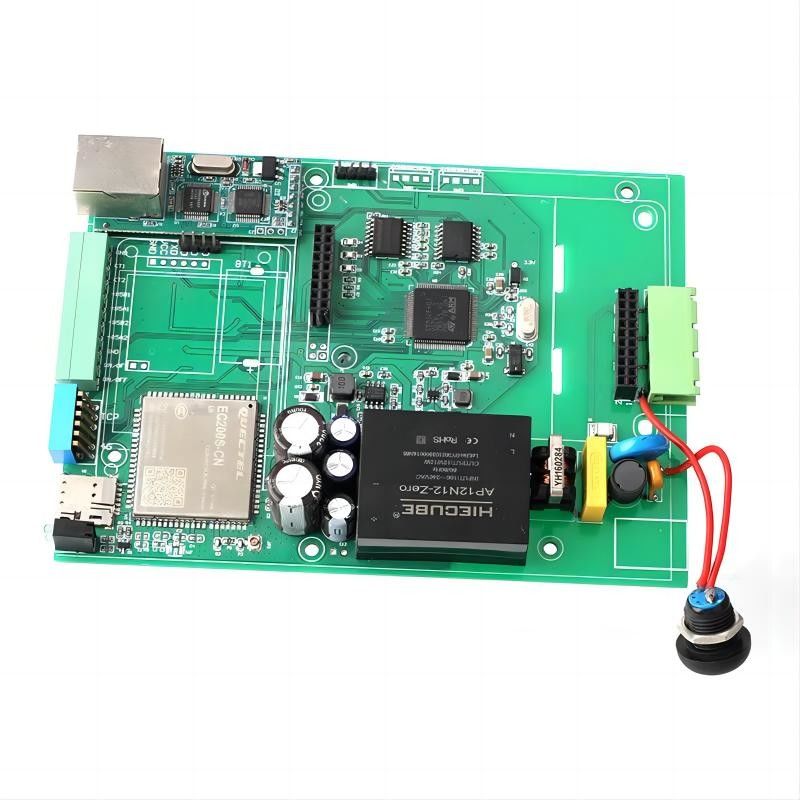

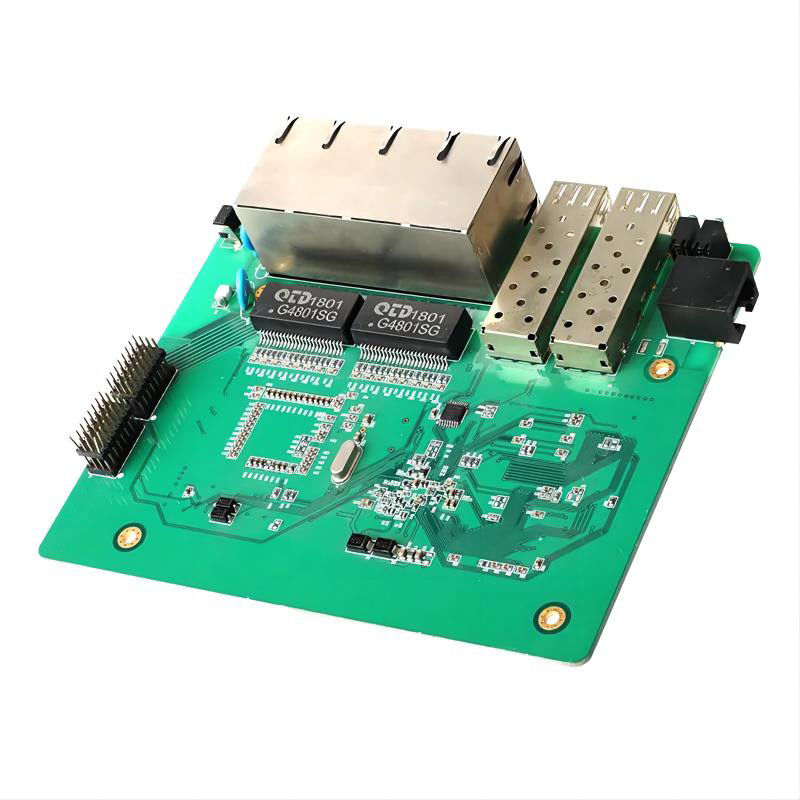

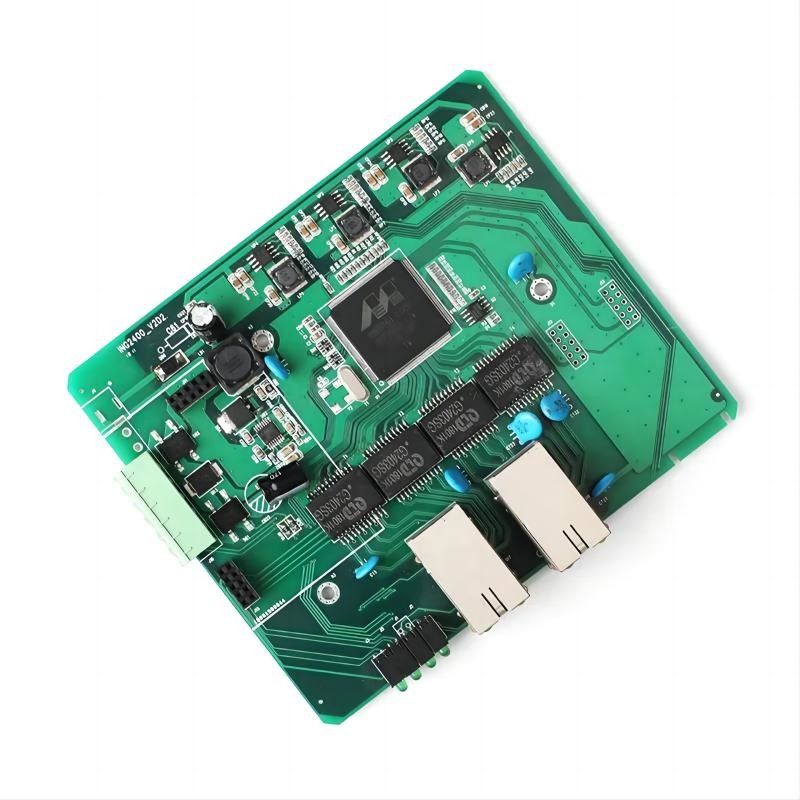

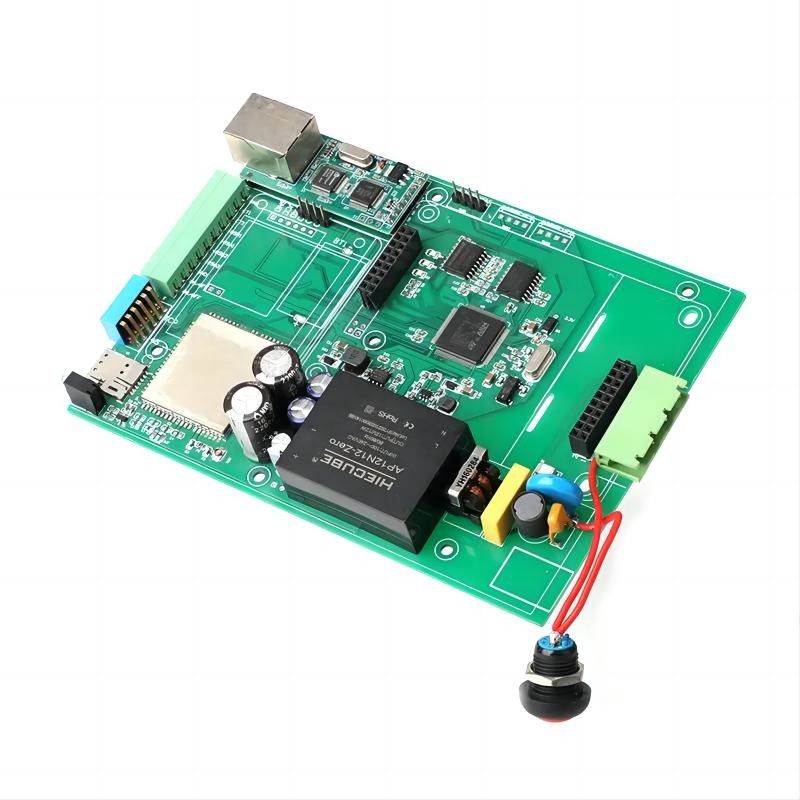

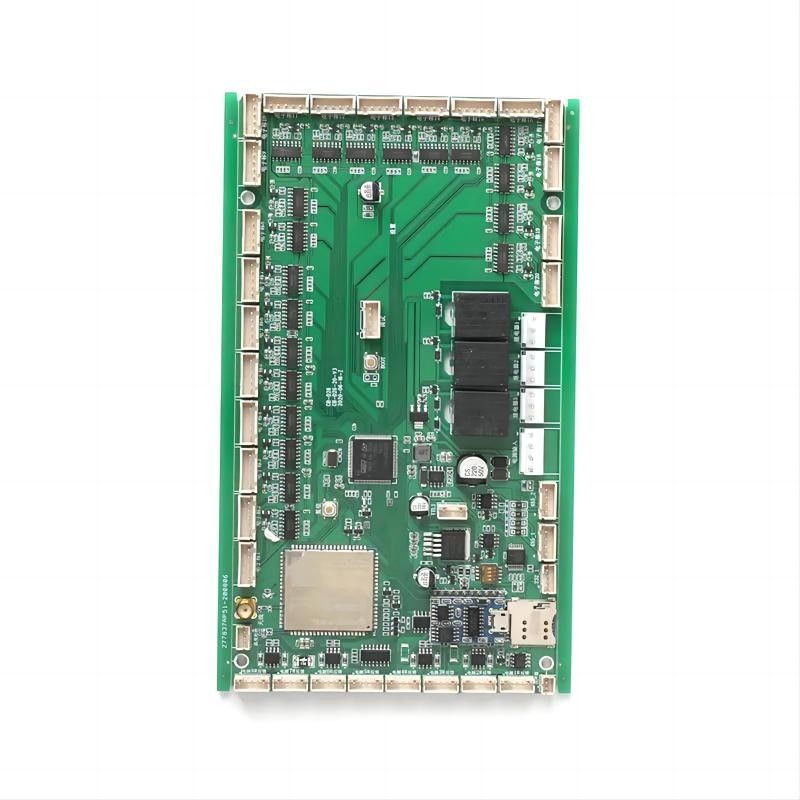

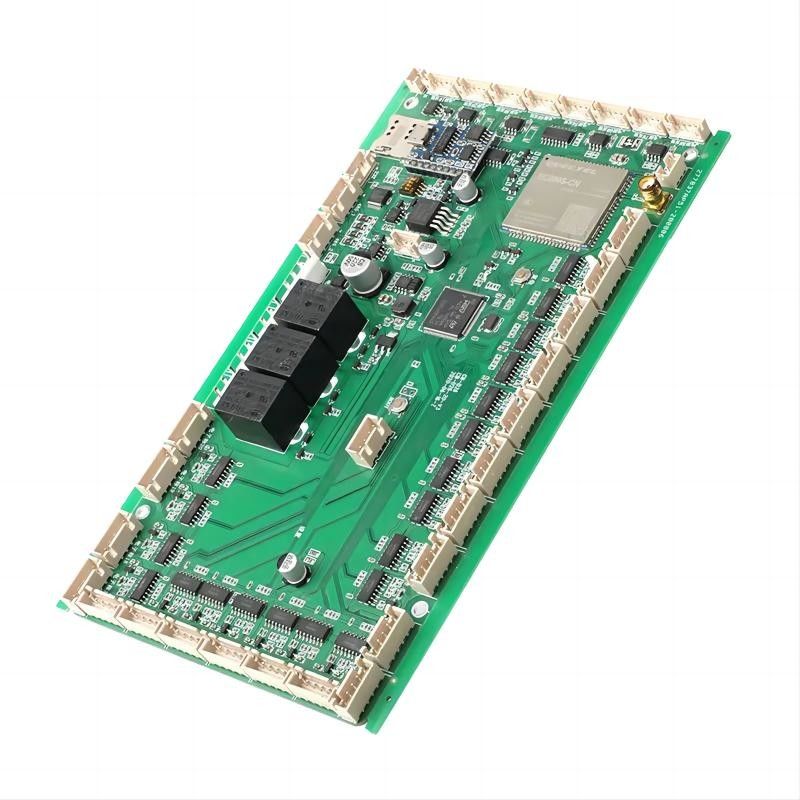

PCB Smart Factory Vacuum Cleaner Home Appliances Electric Iron Rigid Flex PCB Board PCB Assembly.



Description Capability

Service

One-stop Service

Supplier Type

Manufacturer

Copper Thickness

1 oz

Type

Household Appliances PCBA

Model

Household Appliances PCBA

Product name

PCB Smart Factory Vacuum Cleaner Home Appliances Electric Iron Rigid F





The PCB (Printed Circuit Board) assembly used in a smart factory vacuum cleaner and home appliances, such as an electric iron, plays a crucial role in controlling and managing the electronic functions of these devices. Here's a description of the PCB assembly for a smart factory vacuum cleaner and electric iron, including rigid flex PCB boards:



PCB Design: The first step in manufacturing the PCB assembly is the design phase. Designers create a schematic diagram that represents the electrical connections and components required for the smart factory vacuum cleaner or electric iron. They then translate the schematic into a physical PCB layout, considering factors such as component placement, trace routing, and the use of rigid flex PCB boards where necessary.



Component Sourcing: After the PCB design is finalized, manufacturers source the required electronic components for the assembly. This includes components such as micro controllers, sensors, motor drivers, power supply modules, user interface components, and other relevant parts. Manufacturers work with suppliers to procure high-quality components that meet the specifications of the PCB assembly.



PCB Fabrication: The PCB fabrication process involves manufacturing the actual circuit boards based on the PCB design. The process includes printing the circuit pattern onto the board substrate, etching to remove the unnecessary copper, and applying solder mask and silkscreen layers. For rigid flex PCB boards, flexible materials are used to create the flexible sections of the board. Specialized equipment and facilities are used to ensure precision and accuracy during the fabrication process.



Component Placement: Once the PCBs are fabricated, the next step is component placement. Skilled technicians or automated pick-and-place machines carefully position the components onto the PCB according to the design specifications. This process requires attention to detail and accuracy, ensuring that components are correctly oriented and properly soldered.



Soldering: After component placement, the PCB assembly goes through the soldering process to create electrical connections between the components and the PCB. Various soldering techniques can be used, such as reflow soldering for surface-mounted components and wave soldering for through-hole components. These processes ensure secure and reliable connections.
